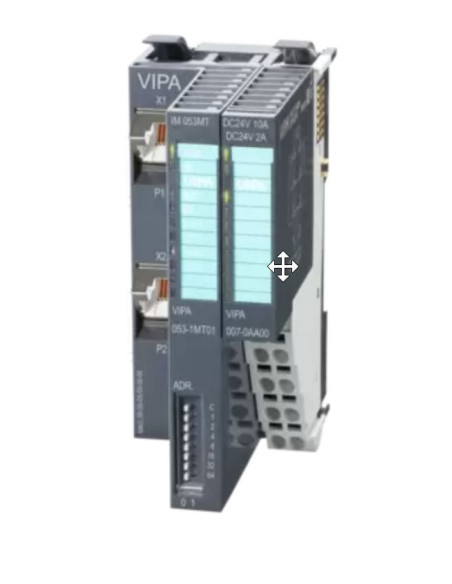

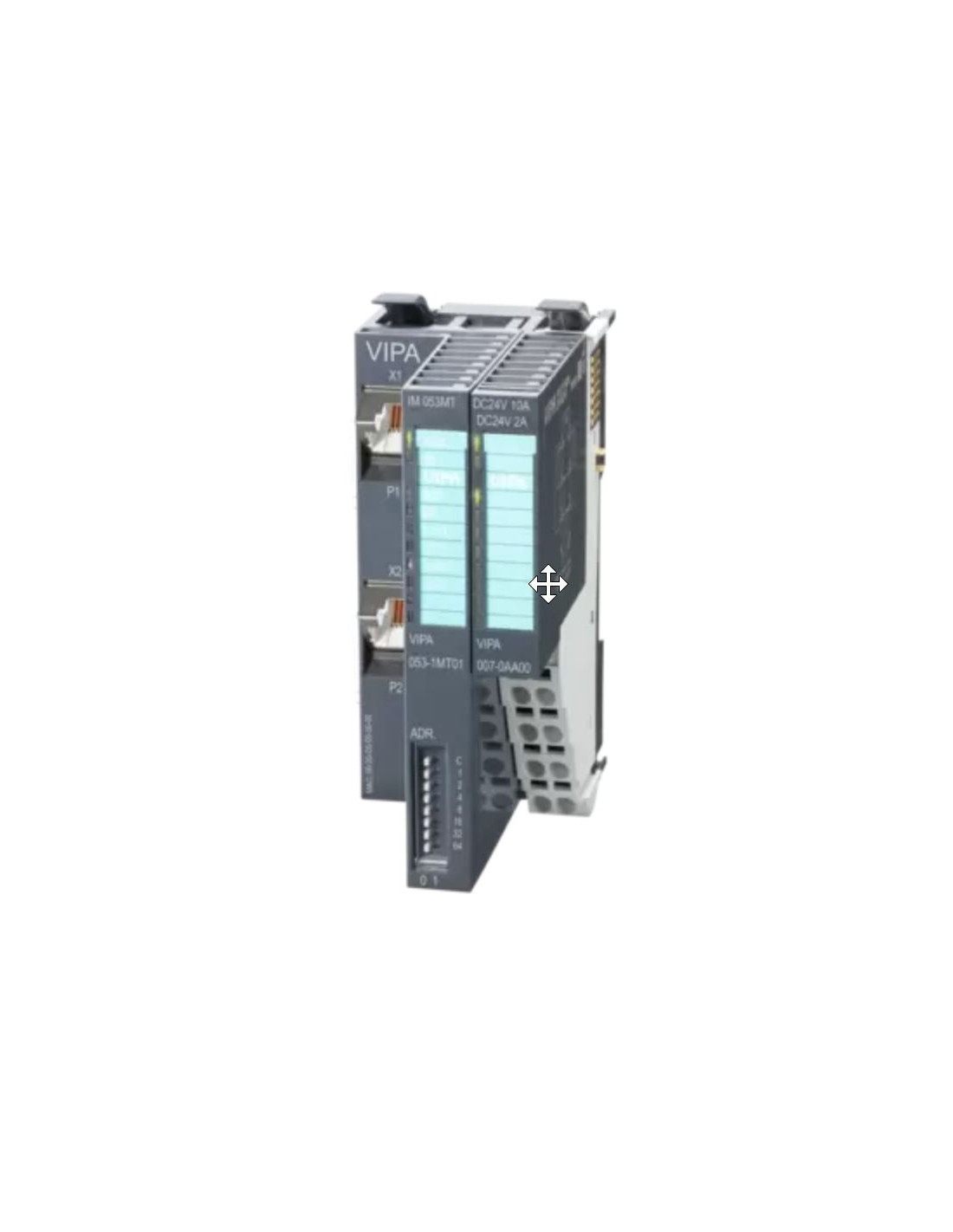

SLIO IM 053 MT Interface Module - Modbus/TCP-IO
Ordercode: VIPA 053-1MT01
- Ethernet coupler with Modbus/TCP protocol for max. 64 peripheral modules
- 2-Port Switch RJ45 100BaseTX fullduplex
- I/O access via up-to 8 stations
- Supports FMM (Free Module Mapping)
- Various diagnostics functions
- Integrated DC 24V power supply for power and electronic section supply of the periphery modules
- Supports HotConnect, Easy Maintenance
- Web server integrated
- Status LEDs
Technical Details
- Input power supply: 24 V
- Current Consumption: 0.95 A
- Max. current drain at backplane bus: 3 A
- Max. current drain load supply: 10 A
- Power Loss: 3 W
- Racks, max.: 1
- Fieldbus: Modbus / TCP/IP
- Connector: 2 x RJ45
- Topology: Line Star, Line
- Transmission speed, max.: 100 Mbit/s
- Address range inputs, max.: 1000 Byte
- Address range outputs, max.: 1000 Byte
- Material: PPE / PPE GF10
- Mounting: Profile rail 35 mm
- Dimensions Weight: 48.5 mm
- Dimensions Height: 109 mm
- Dimensions Depth: 76.5 mm
- Net weight: 160 g
- Gross weight: 175 g
- Certifications: UL certification, KC certification, UKCA certification, ChinaRoHS certification
- Operating temperature Max: 60 °C
